Large Screen Ultrasonic Parking Guidance System Guides Empty Spaces And Direction

Name: Large Screen Ultrasonic Parking Guidance System Guides Empty Spaces And Direction
Brand: Carsafe
Price: 1 USD

Brand Name : Carsafe

Model Number : CA-IL2211

Certification : CE, ISO

Place of Origin : SHENZHEN, CHINA

MOQ : 1 set

Price : negociate

Payment Terms : T/T

Supply Ability : 2000 sets/month

Delivery Time : 20 working days

Packaging Details : Wooden box

Working voltage : 220V AC

Power : 5W (16*16) 7.5W (24*24)

Warranty : 1 year

Communication distance : ≤800m

Size : 80mm (D) *260mm (H) * 350mm (W) (16*16 lattice)

Brightness : 600cd/m²(16*16) 1200cd/m²(24*24)

Contact Now

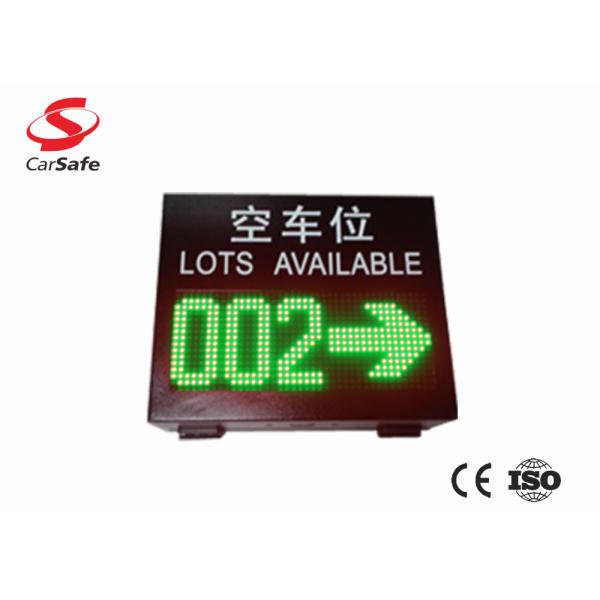

Indoor led screen Ultrasonic parking guidance system parking LED guide display screen for PGS

Indoor parking guidance screen is used to guide the driver to find the corresponding empty area in the parking lot and locate the empty parking space in the area according to the parking indicator.

The indoor parking guide screen not only shows the number of empty parking spaces in the area, but also guides the direction.

Characteristics

The direction and vacancy are displayed synchronously, and the indication is clear.

It can be combined according to needs.

Technical parameters:

Model	CA-IL2211
Working voltage	220V AC
Color	single green (1616) red-green (2424)
Communication distance	≤800m
Power	5W (1616) 7.5W (2424)
Dot matrix	1616/2424
Brightness	600cd/m²(1616) 1200cd/m²(2424)
Specification	80mm (D) 260mm (H) 350mm (W) (16*16 lattice)
Specification	80mm (D) 342mm (H) 532mm (W) (24*24 lattice)
Display size	300mm120mm (1616) 480mm180mm (2424)
Communication mode	RS485
Working temperature	-25℃~70℃
Working humidity	less than 95%, no condensing

Case

Large Screen Ultrasonic Parking Guidance System Guides Empty Spaces And Direction
